线程池详解

ThreadPoolExecutor

在高并发场景中使用线程池有两个好处，其一，使用线程池降低了线程创建、销毁的开销；其二，可以限制进程使用的线程资源数量。

ThreadPoolExecutor 构造参数

/**
     * 创建一个新的线程池实例.
     *
     * @param corePoolSize 是线程池中核心线程数量
     * @param maximumPoolSize 是线程池中的最大线程数量
     * @param keepAliveTime 是空闲线程的最大生存时间
     * @param unit 是时间单位
     * @param workQueue 是任务队列，只保存通过 execute 方法提交的 Runnable 任务
     * @param threadFactory 创建线程的线程工厂
     * @param handler 提交任务过多时的拒绝策略
     */
    public ThreadPoolExecutor(int corePoolSize,
                              int maximumPoolSize,
                              long keepAliveTime,
                              TimeUnit unit,
                              BlockingQueue<Runnable> workQueue,
                              ThreadFactory threadFactory,
                              RejectedExecutionHandler handler) {
        if (corePoolSize < 0 ||
            maximumPoolSize <= 0 ||
            maximumPoolSize < corePoolSize ||
            keepAliveTime < 0)
            throw new IllegalArgumentException();
        if (workQueue == null || threadFactory == null || handler == null)
            throw new NullPointerException();
        this.corePoolSize = corePoolSize;
        this.maximumPoolSize = maximumPoolSize;
        this.workQueue = workQueue;
        this.keepAliveTime = unit.toNanos(keepAliveTime);
        this.threadFactory = threadFactory;
        this.handler = handler;
    }

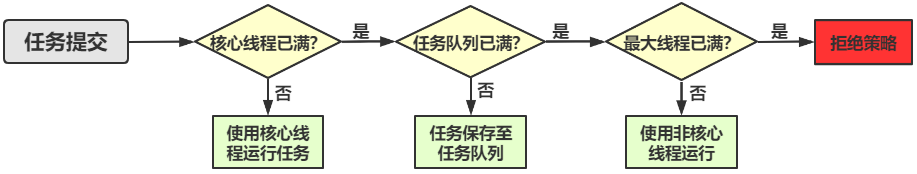

线程池调度流程

拒绝策略

通过实现 RejectedExecutionHandler 接口可以自定义线程池的拒绝策略，在 JDK 中内置了4个拒绝策略：

public static class CallerRunsPolicy implements RejectedExecutionHandler {
    public CallerRunsPolicy() { }
    // 如果线程池未关闭则直接运行该任务，可能回导致任务提交线程性能降低
    public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
        if (!e.isShutdown()) {
            r.run();
        }
    }
}
public static class AbortPolicy implements RejectedExecutionHandler {
    public AbortPolicy() { }
    // 直接抛出异常，默认策略
    public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
        throw new RejectedExecutionException("Task " + r.toString() +
                                             " rejected from " +
                                             e.toString());
    }
}
public static class DiscardPolicy implements RejectedExecutionHandler {
    public DiscardPolicy() { }
    // 什么也不做，相当于丢弃当前提交的任务
    public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
    }
}
public static class DiscardOldestPolicy implements RejectedExecutionHandler {
    public DiscardOldestPolicy() { }
    // 如果线程池未关闭则丢弃任务队列中最久未执行的任务，即队列头的任务
    public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
        if (!e.isShutdown()) {
            e.getQueue().poll();
            e.execute(r);
        }
    }
}

线程池内部属性

// 线程池中使用一个 int 型变量保存线程池的状态以及线程有效数量
// 其中高三位表示状态，后面的29位表示线程的有效数量，因此线程的
// 有效数量为(2^29)-1，目前足够使用
private final AtomicInteger ctl = new AtomicInteger(ctlOf(RUNNING, 0));
private static final int COUNT_BITS = Integer.SIZE - 3;
private static final int COUNT_MASK = (1 << COUNT_BITS) - 1;

// 在高位存储线程池状态
private static final int RUNNING    = -1 << COUNT_BITS; // 即111
private static final int SHUTDOWN   =  0 << COUNT_BITS; // 即000
private static final int STOP       =  1 << COUNT_BITS; // 即001
private static final int TIDYING    =  2 << COUNT_BITS; // 即010
private static final int TERMINATED =  3 << COUNT_BITS; // 即011

// 解析 ctl
private static int runStateOf(int c)     { return c & ~COUNT_MASK; }
private static int workerCountOf(int c)  { return c & COUNT_MASK; }
private static int ctlOf(int rs, int wc) { return rs | wc; }

// 线程池全局锁
private final ReentrantLock mainLock = new ReentrantLock();
// 保存线程池中所有的 Worker ，Worker 是对线程的封装
private final HashSet<Worker> workers = new HashSet<>();
// 线程池结束等待条件
private final Condition termination = mainLock.newCondition();
// 跟踪线程池中最大大小
private int largestPoolSize;
// 线程池中已完成的任务
private long completedTaskCount;
// 如果为 True ，即使核心线程空闲也会回收！！！！
private volatile boolean allowCoreThreadTimeOut;
// 以下为构造器参数属性
private final BlockingQueue<Runnable> workQueue;
private volatile ThreadFactory threadFactory;
private volatile RejectedExecutionHandler handler;
private volatile long keepAliveTime;
private volatile int corePoolSize;
private volatile int maximumPoolSize;

线程池中的 Worker

线程池中的线程都被封装为 Worker ：

private final class Worker
    extends AbstractQueuedSynchronizer
    implements Runnable
{
    /**
     * 这个类不会序列化，提供UID是为了抑制编译器警告
     */
    private static final long serialVersionUID = 6138294804551838833L;

    /** Worker 持有的线程，如果工厂创建失败可能会是 null */
    final Thread thread;
    /** 初始化的任务，可能为空 */
    Runnable firstTask;
    /** 每个 Worker 保存已经执行完的任务数量 */
    volatile long completedTasks;

    // 用一个任务来创建 Worker
    Worker(Runnable firstTask) {
        setState(-1); // 通过它本身的锁结构保证直到运行才可以中断 Worker
        this.firstTask = firstTask;
        this.thread = getThreadFactory().newThread(this);
    }

    /** 委托外部运行该 Worker */
    public void run() {
        runWorker(this);
    }

    // 锁相关方法
    protected boolean isHeldExclusively() {
        return getState() != 0;
    }

    protected boolean tryAcquire(int unused) {
        if (compareAndSetState(0, 1)) {
            setExclusiveOwnerThread(Thread.currentThread());
            return true;
        }
        return false;
    }

    protected boolean tryRelease(int unused) {
        setExclusiveOwnerThread(null);
        setState(0);
        return true;
    }

    public void lock()        { acquire(1); }
    public boolean tryLock()  { return tryAcquire(1); }
    public void unlock()      { release(1); }
    public boolean isLocked() { return isHeldExclusively(); }

    void interruptIfStarted() {
        Thread t;
        if (getState() >= 0 && (t = thread) != null && !t.isInterrupted()) {
            try {
                t.interrupt();
            } catch (SecurityException ignore) {
            }
        }
    }
}

从源码中可以看到，Worker 本身继承了 AQS，它本身就是一把锁，在下面的runWorker函数中可以看到，当它被锁住时，说明它不是空闲线程，同时它也实现了 Runnable 接口，持有一个线程，并且保存了已经执行完的任务数量。线程池的 runWorker 方法如下：

final void runWorker(Worker w) {
        Thread wt = Thread.currentThread();
        Runnable task = w.firstTask; // 获得要执行的第一个任务
        w.firstTask = null;
        w.unlock(); // Worker 初始化时同步状态为 -1 ，这里修改为0才可以被中断
        boolean completedAbruptly = true;
        try {
            while (task != null || (task = getTask()) != null) {
                w.lock();
                // 如果线程池已经停止就中断线程
                // if not, ensure thread is not interrupted.  This
                // requires a recheck in second case to deal with
                // shutdownNow race while clearing interrupt
                if ((runStateAtLeast(ctl.get(), STOP) ||
                     (Thread.interrupted() &&
                      runStateAtLeast(ctl.get(), STOP))) &&
                    !wt.isInterrupted())
                    wt.interrupt();
                try {
                    beforeExecute(wt, task); // 钩子函数
                    try {
                        task.run();  // 执行任务
                        afterExecute(task, null); // 钩子函数
                    } catch (Throwable ex) {
                        afterExecute(task, ex); // 钩子函数
                        throw ex;
                    }
                } finally {
                    task = null;
                    w.completedTasks++; // 完成任务数加一
                    w.unlock();
                }
            }
            completedAbruptly = false;
        } finally {
            processWorkerExit(w, completedAbruptly); // 清理Worker
        }
    }

execute 提交任务

线程池的 execute 函数如下，其流程与之前的的线程池调度流程一致：

public void execute(Runnable command) {
    if (command == null)
        throw new NullPointerException();
    int c = ctl.get();
    // 核心线程未满
    if (workerCountOf(c) < corePoolSize) {
        if (addWorker(command, true)) // 尝试直接新建线程执行
            return;
        c = ctl.get();
    }
    if (isRunning(c) && workQueue.offer(command)) {
        int recheck = ctl.get();
        // 添加队列成功后 double-check 线程池是否关闭或者是否需要新建线程
        if (! isRunning(recheck) && remove(command))
            reject(command);
        else if (workerCountOf(recheck) == 0)
            addWorker(null, false);
    }
    else if (!addWorker(command, false)) // 尝试使用非核心线程执行
        reject(command);
}

线程池的 addWorker 函数如下：

private boolean addWorker(Runnable firstTask, boolean core) {
    retry:
    for (int c = ctl.get();;) {
        // 检查线程池状态
        if (runStateAtLeast(c, SHUTDOWN)
            && (runStateAtLeast(c, STOP)
                || firstTask != null
                || workQueue.isEmpty()))
            return false;

        for (;;) {
            if (workerCountOf(c)
                >= ((core ? corePoolSize : maximumPoolSize) & COUNT_MASK))
                return false; // 核心线程或最大线程数量已满
            if (compareAndIncrementWorkerCount(c))
                break retry;
            c = ctl.get();  // Re-read ctl
            if (runStateAtLeast(c, SHUTDOWN))
                continue retry;
        }
    }

    boolean workerStarted = false;
    boolean workerAdded = false;
    Worker w = null;
    try {
        w = new Worker(firstTask);
        final Thread t = w.thread;
        if (t != null) {
            final ReentrantLock mainLock = this.mainLock;
            mainLock.lock();
            try {
                int c = ctl.get();

                if (isRunning(c) ||
                    (runStateLessThan(c, STOP) && firstTask == null)) {
                    if (t.isAlive()) // 线程如果已启动抛出异常
                        throw new IllegalThreadStateException();
                    workers.add(w);
                    int s = workers.size();
                    if (s > largestPoolSize)
                        largestPoolSize = s; // 更踪线程池最大线程数量
                    workerAdded = true;
                }
            } finally {
                mainLock.unlock();
            }
            if (workerAdded) {
                t.start(); // 添加成功就执行，会执行到 runWorker 函数
                workerStarted = true;
            }
        }
    } finally {
        if (! workerStarted)
            addWorkerFailed(w); // 回滚
    }
    return workerStarted;
}

/**
 * 回滚添加Worker操作.
 * - 从 workers 中移除 Worker
 * - 减小 workerCount
 * - 检查线程池是否关闭
 */
private void addWorkerFailed(Worker w) {
    final ReentrantLock mainLock = this.mainLock;
    mainLock.lock();
    try {
        if (w != null)
            workers.remove(w);
        decrementWorkerCount();
        tryTerminate();
    } finally {
        mainLock.unlock();
    }
}

关闭线程池

关闭线程池有两个函数如下：

public void shutdown() {
    final ReentrantLock mainLock = this.mainLock;
    mainLock.lock();
    try {
        checkShutdownAccess(); // 检查权限
        advanceRunState(SHUTDOWN); // 修改线程池状态
        // 中断空闲线程 （通过判断 Worker 的锁状态）
        interruptIdleWorkers();
        onShutdown(); // 钩子函数
    } finally {
        mainLock.unlock();
    }
    tryTerminate(); // 等待结束线程池
}
public List<Runnable> shutdownNow() {
    List<Runnable> tasks;
    final ReentrantLock mainLock = this.mainLock;
    mainLock.lock();
    try {
        checkShutdownAccess();
        advanceRunState(STOP);
        interruptWorkers();  // 中断所有线程
        tasks = drainQueue();
    } finally {
        mainLock.unlock();
    }
    tryTerminate();
    return tasks; // 将任务队列中未执行的任务返回
}

final void tryTerminate() {
    for (;;) {
        int c = ctl.get();
        // 检查是否符合终止线程池条件，不符合就返回
        if (isRunning(c) ||
            runStateAtLeast(c, TIDYING) ||
            (runStateLessThan(c, STOP) && ! workQueue.isEmpty()))
            return;
        if (workerCountOf(c) != 0) {
            interruptIdleWorkers(ONLY_ONE);
            return;
        }

        final ReentrantLock mainLock = this.mainLock;
        mainLock.lock();
        try {
            if (ctl.compareAndSet(c, ctlOf(TIDYING, 0))) {
                try {
                    terminated(); // 钩子函数
                } finally {
                    ctl.set(ctlOf(TERMINATED, 0));
                    termination.signalAll(); // 唤醒等待线程池关闭的线程
                }
                return;
            }
        } finally {
            mainLock.unlock();
        }
    }
}

submit 提交任务

submit 用来提交有返回值的任务，源码如下：

// 构建 RunnableFuture
protected <T> RunnableFuture<T> newTaskFor(Runnable runnable, T value) {
    return new FutureTask<T>(runnable, value);
}

protected <T> RunnableFuture<T> newTaskFor(Callable<T> callable) {
    return new FutureTask<T>(callable);
}

public Future<?> submit(Runnable task) {
    if (task == null) throw new NullPointerException();
    RunnableFuture<Void> ftask = newTaskFor(task, null);
    execute(ftask);
    return ftask;
}

public <T> Future<T> submit(Runnable task, T result) {
    if (task == null) throw new NullPointerException();
    RunnableFuture<T> ftask = newTaskFor(task, result);
    execute(ftask);
    return ftask;
}

public <T> Future<T> submit(Callable<T> task) {
    if (task == null) throw new NullPointerException();
    RunnableFuture<T> ftask = newTaskFor(task);
    execute(ftask);
    return ftask;
}

从源码中可以看出，submit 是将任务封装为一个 RunnableFuture，然后调用 execute 方法执行，返回封装的任务。因此关键点在于 RunnableFuture，它实现了 Runnable 接口与 Future 接口，在线程池中使用的是实现该接口的 FutureTask 类，它支持取消任务，查看任务的状态等功能，该类的属性定义如下

// 定义 FutureTask 的状态
private volatile int state;
private static final int NEW          = 0;
private static final int COMPLETING   = 1;
private static final int NORMAL       = 2;
private static final int EXCEPTIONAL  = 3;
private static final int CANCELLED    = 4;
private static final int INTERRUPTING = 5;
private static final int INTERRUPTED  = 6;

/** 持有的 Callable 对象 */
private Callable<V> callable;
/** 执行结果，可以通过 get() 方法获取*/
private Object outcome; // non-volatile, protected by state reads/writes
/** 持有的线程 */
private volatile Thread runner;
/** 线程等待队列 */
private volatile WaitNode waiters;

该类的 run 方法定义如下：

public void run() {
    if (state != NEW ||
        !RUNNER.compareAndSet(this, null, Thread.currentThread()))
        return;
    try {
        Callable<V> c = callable;
        if (c != null && state == NEW) {
            V result;
            boolean ran;
            try {
                result = c.call(); // 执行任务
                ran = true;
            } catch (Throwable ex) {
                result = null;
                ran = false;
                setException(ex); // 设置异常
            }
            if (ran)
                set(result); // 设置返回值
        }
    } finally {
        runner = null;
        int s = state;
        if (s >= INTERRUPTING)
            handlePossibleCancellationInterrupt(s);
    }
}
// 通过 CAS 设置异常或者返回值
protected void set(V v) {
    if (STATE.compareAndSet(this, NEW, COMPLETING)) {
        outcome = v;
        STATE.setRelease(this, NORMAL); // final state
        finishCompletion(); // 唤醒队列中的其它线程并移除当前线程
    }
}
protected void setException(Throwable t) {
    if (STATE.compareAndSet(this, NEW, COMPLETING)) {
        outcome = t; // 将异常赋给 outcome
        STATE.setRelease(this, EXCEPTIONAL);
        finishCompletion(); // 唤醒队列中的其它线程并移除当前线程
    }
}

该类的 cancel 方法可以取消任务的执行：

public boolean cancel(boolean mayInterruptIfRunning) {
    if (!(state == NEW && STATE.compareAndSet
          (this, NEW, mayInterruptIfRunning ? INTERRUPTING : CANCELLED)))
        return false;
    try {
        if (mayInterruptIfRunning) {
            try {
                Thread t = runner;
                if (t != null)
                    t.interrupt(); // 如果传入 true，线程已启动就中断
            } finally {
                STATE.setRelease(this, INTERRUPTED);
            }
        }
    } finally {
        finishCompletion();
    }
    return true;
}

该类的 get 方法会阻塞直到任务完成或出现异常：

public V get() throws InterruptedException, ExecutionException {
    int s = state;
    if (s <= COMPLETING)
        s = awaitDone(false, 0L); // 等待任务完成
    return report(s);
}

public V get(long timeout, TimeUnit unit)
    throws InterruptedException, ExecutionException, TimeoutException {
    if (unit == null)
        throw new NullPointerException();
    int s = state;
    // 超时等待任务完成
    if (s <= COMPLETING &&
        (s = awaitDone(true, unit.toNanos(timeout))) <= COMPLETING)
        throw new TimeoutException();
    return report(s);
}
private V report(int s) throws ExecutionException {
    Object x = outcome;
    if (s == NORMAL)
        return (V)x;
    if (s >= CANCELLED)  // 任务已经被取消
        throw new CancellationException();
    throw new ExecutionException((Throwable)x); // 抛出任务异常
}
